The Ultimate Guide to Protecting Cells in Excel: Secure Your Spreadsheets
Protecting cells in Excel is crucial for maintaining data integrity, preventing accidental modifications, and controlling user access to specific parts of your spreadsheets. Whether you’re managing sensitive financial data, creating a collaborative worksheet, or simply ensuring the accuracy of your formulas, this guide provides a comprehensive, step-by-step approach to mastering cell protection in Excel.
This guide will walk you through the process, from understanding the fundamentals of cell locking and worksheet protection to applying advanced techniques for granular control. By the end, you’ll be able to confidently secure your Excel workbooks and maintain the integrity of your data.
Understanding Cell Protection in Excel
At its core, protecting cells in Excel involves two key steps:
- Locking Cells: By default, all cells in an Excel worksheet are locked. However, this locking mechanism only becomes active when worksheet protection is enabled. You can unlock specific cells that you want users to be able to edit.
- Worksheet Protection: This is the action that activates the cell locking mechanism. When you protect a worksheet, locked cells become uneditable, while unlocked cells remain accessible for data entry or modification.
This two-step process allows you to selectively control which parts of your spreadsheet can be altered.
Preparing Your Worksheet for Protection
Before enabling worksheet protection, it’s crucial to identify the cells that you want to allow users to edit. Here’s how to unlock specific cells:
Step 1: Select the Cells to Unlock
Identify the range of cells you want to unlock. This might be a single cell, a column, a row, or a non-contiguous range. Use your mouse to select the desired cells or use the keyboard shortcut Ctrl + Shift + Arrow Keys to select adjacent cells. For non-contiguous selections, hold down the Ctrl key while clicking on the individual cells or ranges.
Step 2: Access the Format Cells Dialog Box
There are several ways to access the “Format Cells” dialog box:
- Right-Click: Right-click on the selected cells and choose “Format Cells…” from the context menu.
- Keyboard Shortcut: Press
Ctrl + 1. - Home Tab: Navigate to the “Home” tab on the Excel ribbon, find the “Cells” group, click “Format,” and then select “Format Cells…”
Step 3: Unlock the Selected Cells
In the “Format Cells” dialog box:
For official guidance, refer to Microsoft’s official Excel documentation.
- Click on the “Protection” tab.
- Uncheck the “Locked” checkbox.
- Click “OK”.
Now, the selected cells are unlocked and ready for editing once worksheet protection is enabled.
Example:
You want to allow users to enter sales data in column C (C2:C100) but protect all other cells. Select the range C2:C100, open the Format Cells dialog box, go to the Protection tab, and uncheck the “Locked” box.
Protecting the Worksheet
Once you’ve unlocked the cells that require editing, you can activate worksheet protection.
Step 1: Navigate to the Protect Sheet Dialog Box
- Go to the “Review” tab on the Excel ribbon.
- Click on “Protect Sheet.”
Step 2: Configure Protection Options
The “Protect Sheet” dialog box appears. Here you can configure the protection options:
- Password (Optional): Enter a password if you want to require a password to unprotect the sheet. Important: If you lose the password, you will not be able to unprotect the sheet. Store your passwords securely.
- Allow Users of This Worksheet To: This section allows you to specify what actions users can perform on the protected sheet. By default, “Select locked cells” and “Select unlocked cells” are enabled. You can grant users additional permissions, such as:
- Format Cells: Allows users to change the formatting of cells.
- Format Columns: Allows users to change the formatting of columns.
- Format Rows: Allows users to change the formatting of rows.
- Insert Columns: Allows users to insert new columns.
- Insert Rows: Allows users to insert new rows.
- Insert Hyperlinks: Allows users to insert hyperlinks.
- Delete Columns: Allows users to delete columns.
- Delete Rows: Allows users to delete rows.
- Sort: Allows users to sort data.
- Use AutoFilter: Allows users to use AutoFilter.
- Use PivotTable Reports: Allows users to use PivotTable reports.
- Edit Objects: Allows users to edit graphic objects, including maps and embedded charts.
- Edit Scenarios: Allows users to edit scenarios.
Step 3: Enable Protection

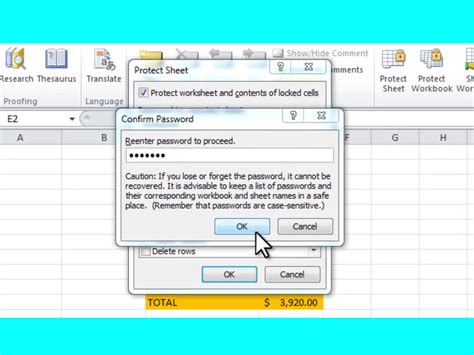

Click “OK”. If you entered a password, you will be prompted to re-enter it to confirm.
The worksheet is now protected. Locked cells are uneditable, while unlocked cells remain accessible based on the permissions you granted.
Example:
You want to protect the sheet and allow users to only select and format unlocked cells. In the “Protect Sheet” dialog box, enter a password (optional), and ensure only “Select locked cells,” “Select unlocked cells,” and “Format Cells” are checked.
Unprotecting the Worksheet
To unprotect a worksheet and re-enable editing of all cells:
Step 1: Navigate to the Unprotect Sheet Option
- Go to the “Review” tab on the Excel ribbon.
- Click on “Unprotect Sheet.” If a password was used, you will be prompted to enter it.
Step 2: Enter the Password (If Required)
Enter the correct password and click “OK”. If no password was used, the sheet will be unprotected immediately.
The worksheet is now unprotected, and all cells can be edited.
Advanced Cell Protection Techniques
Beyond basic cell locking and worksheet protection, Excel offers advanced techniques for more granular control over data security and user permissions.
Protecting Specific Ranges with Different Passwords
Excel allows you to protect specific ranges of cells with different passwords. This is particularly useful when you want to grant different levels of access to different users.
Step 1: Unlock All Cells
First, ensure that all cells in the worksheet are unlocked. Select the entire sheet (click the triangle in the top-left corner of the worksheet) and unlock all cells via the Format Cells dialog box (Ctrl + 1, Protection tab, uncheck “Locked”).
Step 2: Select the First Range to Protect
Select the range of cells you want to protect with the first password.
Step 3: Enable “Allow Users to Edit Ranges”
- Go to the “Review” tab on the Excel ribbon.
- Click on “Allow Edit Ranges.”
Step 4: Define the Range and Password
- Click “New.”
- In the “Title” box, enter a descriptive name for the range (e.g., “Sales Data”).
- The “Refers to cells” box should already contain the selected range. If not, click the button to select the range manually.
- Enter a password in the “Password” box.
- Click “OK”.
- Confirm the password and click “OK” again.
Step 5: Repeat for Other Ranges
Repeat steps 2-4 for any other ranges you want to protect with different passwords.
Step 6: Protect the Worksheet
Click “Protect Sheet” in the “Allow Edit Ranges” dialog box. This will activate the range protection. You can optionally set a password for the sheet itself, which will protect any cells not covered by a specific range password.
Example:
You have a worksheet with sales data (A1:B10) that should only be edited by the sales manager and financial projections (C1:D10) that should only be edited by the finance team. Use “Allow Edit Ranges” to protect A1:B10 with one password and C1:D10 with another password.
Using Data Validation with Protection
Data validation can be combined with cell protection to control the type of data entered into specific cells and prevent unauthorized modifications.
Step 1: Select the Cells for Data Validation
Select the cells to which you want to apply data validation.
Step 2: Configure Data Validation Rules
- Go to the “Data” tab on the Excel ribbon.
- Click on “Data Validation.”
- In the “Settings” tab, choose the validation criteria (e.g., “Whole number,” “Decimal,” “List,” “Date,” “Text length”).
- Define the criteria based on your requirements (e.g., Minimum, Maximum, Source list).
- In the “Input Message” tab, create a helpful message that appears when the user selects the cell.
- In the “Error Alert” tab, define what happens when a user enters invalid data. You can choose the style (“Stop,” “Warning,” “Information”) and customize the error message.
- Click “OK”.
Step 3: Lock the Cells with Data Validation
Go to the “Format Cells” dialog box (Ctrl + 1), select the “Protection” tab, and ensure the “Locked” checkbox is checked.
Step 4: Protect the Worksheet
Protect the worksheet (Review tab, Protect Sheet).
Now, users can only enter data that meets the data validation criteria, and they cannot modify the validation rules without unprotecting the sheet.
Example:
You want to ensure that users only enter dates within a specific range (e.g., January 1, 2023, to December 31, 2023) in column A. Use data validation to set a date range and then protect the worksheet to prevent users from entering invalid dates or changing the validation rules.
Hiding Formulas
If your worksheet contains sensitive formulas that you don’t want users to see, you can hide them while still allowing the formulas to calculate and display results.
Step 1: Select the Cells Containing Formulas
Select the cells that contain the formulas you want to hide.
Step 2: Hide the Formulas
- Go to the “Format Cells” dialog box (Ctrl + 1).
- Select the “Protection” tab.
- Check the “Hidden” checkbox.
- Click “OK”.
Step 3: Protect the Worksheet
Protect the worksheet (Review tab, Protect Sheet). Ensure that the “Select locked cells” option is enabled to allow users to view the cell values, even though they cannot see the underlying formulas.
Now, when the worksheet is protected, users can see the results of the formulas, but they cannot view the formulas themselves in the formula bar.
Example:
You have a pricing formula in column B that you don’t want users to see but need to calculate automatically. Select column B, format cells, Protection tab, check “Hidden,” and then protect the sheet.
Examples of Practical Applications
Here are some real-world examples of how you can use cell protection in Excel:
- Budgeting: Protect the budget template, allowing users to enter expenses but preventing them from modifying the formulas that calculate totals and track spending.
- Invoice Management: Lock the invoice template, allowing users to enter customer details, item descriptions, and quantities, but preventing them from modifying the unit prices or discount rates.
- Inventory Tracking: Protect the inventory spreadsheet, allowing users to update stock levels but preventing them from changing the item codes or descriptions.
- Project Management: Lock the project plan, allowing users to update task statuses and deadlines, but preventing them from modifying the project schedule or dependencies.
- Financial Reporting: Hide complex formulas used in financial statements while allowing users to view the calculated results.
Formula-Based Protection
You can also apply protection conditionally using formulas. This is especially useful when you want to protect cells based on certain criteria being met. This often involves combining formulas with Data Validation, but the protection aspect relies on a separate ‘helper’ column and conditional formatting.
Scenario: We only want to allow edits to a row if the “Status” column (Column C) is set to “Pending”.
Step 1: Create a Helper Column
In a column (e.g., Column D), add a formula to determine if the “Status” is “Pending”.
=IF(C2="Pending",TRUE,FALSE)
Copy this formula down for all relevant rows.
Step 2: Data Validation
For the columns you want to be editable only when the status is pending (e.g., Columns A and B), apply Data Validation. This will alert users attempting to edit protected cells.
– Select the data range (A2:B100)
– Go to Data > Data Validation > Settings
– Choose ‘Custom’
– Enter the following formula:
=$D2=TRUE
This ensures the cell is only valid if the helper column (D) is TRUE (i.e., Status is Pending).
Step 3: Format Cells
Now, lock all the cells you want to protect.
– Select the entire sheet, right click, Format Cells.
– Go to the ‘Protection’ tab and select ‘Locked’.
Step 4: Protect the Sheet
Finally, protect the sheet (Review tab, Protect Sheet).
Now, Column A and B can only be edited when column C is “Pending”.
Summary
Protecting cells in Excel is an essential skill for anyone working with spreadsheets, whether you’re managing sensitive data, collaborating with others, or simply ensuring the accuracy of your formulas. By following the steps outlined in this guide, you can confidently secure your Excel workbooks and maintain the integrity of your data. Remember to carefully consider the level of protection required for each worksheet and choose the appropriate techniques to meet your specific needs. Always store passwords securely, and be mindful of the permissions you grant to other users. Regularly review your protection settings to ensure they remain effective and aligned with your changing requirements.
FAQs
1. What happens if I forget the password to unprotect a worksheet?
Unfortunately, if you forget the password to unprotect a worksheet, there is no built-in mechanism in Excel to recover it. You will likely lose access to editing the protected cells. It is crucial to store passwords securely. Some third-party tools claim to be able to crack Excel passwords, but their effectiveness is not guaranteed, and using them might violate your organization’s security policies.
2. Can I protect only specific formulas in a cell without hiding the entire cell?
No, Excel doesn’t offer a feature to protect individual parts of a formula within a cell. If you want to protect a formula, you must hide the entire cell. A workaround is to break down the complex formula into multiple cells, hiding the cells containing the sensitive parts of the calculation.
3. Why are my cells still editable after I protect the worksheet?
This usually happens because the cells were not locked before the worksheet was protected. By default, all cells are locked, but if you explicitly unlocked cells before protecting the sheet, or are using the ‘Allow Edit Ranges’ feature incorrectly, they will remain editable. Ensure the cells you want to protect have the “Locked” checkbox checked in the Format Cells dialog box (Ctrl + 1, Protection tab) before protecting the worksheet. Also, double-check that you are not using “Allow Edit Ranges” which overrides the general sheet protection.
