The Definitive Guide to Excel’s OFFSET Function
The OFFSET function in Excel is a powerful, yet often underutilized, tool for creating dynamic ranges and performing advanced calculations. It allows you to select a range of cells relative to a starting point, making it incredibly useful for tasks like dynamic charts, flexible data analysis, and automatically updating formulas. This comprehensive guide will break down the OFFSET function, providing practical examples and step-by-step instructions to help you master its capabilities.
Understanding the OFFSET Function

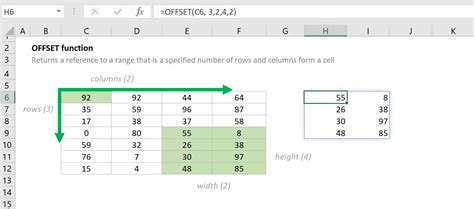

The OFFSET function returns a reference to a range that is a specified number of rows and columns from a starting cell or range. Its versatility lies in its ability to adjust the referenced range based on changing data or conditions.
Syntax:
reference: This is the starting cell or range from which the offset will be calculated.rows: The number of rows to offset from thereference. Positive values move downward, negative values move upward.cols: The number of columns to offset from thereference. Positive values move right, negative values move left.[height](Optional): The height (number of rows) of the returned range. If omitted, it defaults to the height of thereference.[width](Optional): The width (number of columns) of the returned range. If omitted, it defaults to the width of thereference.
Key Considerations:
- The OFFSET function returns a reference to a range, not the actual values within that range. It’s often used in conjunction with other functions like
SUM,AVERAGE,INDEX, andMATCHto extract or manipulate the data within the referenced range. - If the
rowsorcolsarguments cause the function to offset beyond the edges of the worksheet, it will return a#REF!error. - OFFSET is a volatile function, meaning it recalculates every time the worksheet changes, even if the inputs to the OFFSET function itself haven’t changed. This can impact performance in large or complex spreadsheets. Consider using alternative functions like
INDEXandMATCHfor improved performance when possible.
Basic Usage: Selecting a Single Cell
Let’s start with a simple example to understand how the rows and cols arguments work. Assume you have the following data in your Excel sheet:
| A | B | C | |
|---|---|---|---|
| 1 | 10 | 20 | 30 |
| 2 | 40 | 50 | 60 |
| 3 | 70 | 80 | 90 |
Example 1: Referencing cell B2 using A1 as the reference.
To retrieve the value of cell B2 (which is 50) using A1 as the reference point, you would use the following formula:
For official guidance, refer to Microsoft’s official Excel documentation.
A1is the reference cell.1(rows) moves one row down from A1.1(cols) moves one column to the right from A1.
Example 2: Referencing cell A3 using C1 as the reference.
To retrieve the value of cell A3 (which is 70) using C1 as the reference point, you would use the following formula:
C1is the reference cell.2(rows) moves two rows down from C1.-2(cols) moves two columns to the left from C1.
Advanced Usage: Selecting a Range of Cells
The real power of the OFFSET function shines when you use it to define dynamic ranges. By specifying the height and width arguments, you can select a range of cells relative to the starting point.
Example 3: Summing a 2×2 range starting from B2
Using the same data as before:
| A | B | C | |
|---|---|---|---|
| 1 | 10 | 20 | 30 |
| 2 | 40 | 50 | 60 |
| 3 | 70 | 80 | 90 |
To sum the values in the range B2:C3, you could use the following formula:
B2is the reference cell.0(rows) means no vertical offset.0(cols) means no horizontal offset.2(height) defines the range as 2 rows high.2(width) defines the range as 2 columns wide.
This formula is equivalent to
, but the OFFSET version allows you to dynamically change the summed range by modifying the height and width arguments.
Practical Applications of the OFFSET Function
Here are some practical scenarios where the OFFSET function can be incredibly useful:
1. Dynamic Charts:
OFFSET can be used to create charts that automatically update as your data changes. Imagine you’re tracking monthly sales data. You can use OFFSET to define the data range for your chart, ensuring that the chart always displays the latest sales figures without requiring manual adjustments.
Step-by-step:
- Data Setup: Create a table with your monthly sales data, starting in cell A1. The months should be in column A (e.g., January, February, March), and the sales figures in column B.
- Name Manager: Go to the Formulas tab and click on “Define Name” (or use the keyboard shortcut Ctrl + F3).
- Define Names: Create two new names:
- Name:
Months- Refers to:
(Replace “Sheet1” with your sheet name if different)
- Refers to:
- Name:
Sales- Refers to:
(Replace “Sheet1” with your sheet name if different)
- Refers to:
- Name:
- Create Chart: Select the Insert tab and choose a chart type (e.g., a line chart). Instead of selecting a data range, right-click on the chart and choose “Select Data”.
- Add Series: Click “Add” under Legend Entries (Series).
- Series name: Type “Monthly Sales”.
- Series values:
(Replace “Sheet1” with your sheet name if different)
- Edit Horizontal Axis Labels: Click “Edit” under Horizontal (Category) Axis Labels.
- Axis label range:
(Replace “Sheet1” with your sheet name if different)
- Axis label range:
Now, as you add more monthly sales data to your table, the chart will automatically update to reflect the changes.
Explanation of the formulas:
COUNTA(Sheet1!$A:$A)-1: This counts the number of non-empty cells in column A (including the header row) and subtracts 1 to exclude the header. This determines the dynamic height of the range.OFFSET(Sheet1!$A$2,0,0,COUNTA(Sheet1!$A:$A)-1,1): This starts from cell A2 and creates a range that extends downwards to include all the month names. The height is determined dynamically by theCOUNTAfunction. The width is 1, as we only need one column. The same logic applies to theSalesformula.
2. Rolling Averages:
Calculating rolling averages (also known as moving averages) is a common task in data analysis. The OFFSET function can be used to dynamically define the range of data to include in the average calculation.
Step-by-step:
- Data Setup: Enter your data in a column, starting in cell A1 (e.g., daily stock prices).
-
Calculate Rolling Average: In cell B3 (assuming your data starts in A1), enter the following formula to calculate a 3-day rolling average:
-
Copy Formula: Drag the formula down column B to calculate the rolling average for the remaining data points.
Explanation of the formula:
A3is the reference cell (the current day’s stock price).-2(rows) moves two rows up from A3. This is because we want the average of the current day and the previous two days.0(cols) means no horizontal offset.3(height) defines the range as 3 rows high (the current day and the previous two).1(width) defines the range as 1 column wide (only the stock prices).
This formula calculates the average of the three values (the current row, the row above it, and the row two above it) and provides a rolling average. As you drag the formula down, the range being averaged dynamically shifts.
3. Dynamic Data Validation Lists:
The OFFSET function can be used to create data validation lists that automatically update as you add or remove items from the source list. This is particularly useful for creating drop-down menus where the options change over time.
Step-by-step:
- Data Setup: Create a list of items in a column (e.g., product categories), starting in cell A1.
- Name Manager: Go to the Formulas tab and click on “Define Name” (or use the keyboard shortcut Ctrl + F3).
- Define Name: Create a new name:
- Name:
ProductCategories- Refers to:
(Replace “Sheet1” with your sheet name if different)
- Refers to:
- Name:
- Data Validation: Select the cell where you want the drop-down list to appear.
- Open Data Validation: Go to the Data tab and click on “Data Validation”.
- Settings: In the “Settings” tab:
- Allow: Choose “List”.
- Source: Enter
- Click OK.
Now, the cell will have a drop-down list containing the items from your product category list. As you add or remove items from the list, the drop-down list will automatically update.
Explanation of the formula:
COUNTA(Sheet1!$A:$A): This counts the number of non-empty cells in column A, which includes the header and all the product categories. This determines the dynamic height of the range.OFFSET(Sheet1!$A$1,0,0,COUNTA(Sheet1!$A:$A),1): This starts from cell A1 and creates a range that extends downwards to include all the product categories. The height is determined dynamically by theCOUNTAfunction. The width is 1, as we only need one column.
4. Implementing a Dynamic VLOOKUP:
Sometimes, the data source of your VLOOKUP function might change or grow. Using OFFSET in conjunction with COUNTA allows the VLOOKUP to adapt to these changes automatically.
Step-by-step
-
Data Setup: Assume you have a table of products and their prices. Column A contains the Product ID, and Column B contains the Price. The table starts at cell A1.
-
Define Named Ranges: Go to the Formulas tab, and click “Define Name.” Create two named ranges:
ProductIDRange:
PriceRange:
(Replace Sheet1 with your actual sheet name if needed)
-
VLOOKUP Formula: In a cell where you want to retrieve the price (e.g., D2), enter the following formula:
- D1 is the cell containing the Product ID you want to look up.
Explanation
COUNTA(Sheet1!$A:$A) - 1calculates the number of data rows in column A, excluding the header.OFFSET(Sheet1!$A$2, 0, 0, COUNTA(Sheet1!$A:$A) - 1, 1)dynamically defines the range for the Product IDs, starting from A2 and extending down to the last Product ID entry.OFFSET(Sheet1!$B$2, 0, 0, COUNTA(Sheet1!$B:$B) - 1, 1)dynamically defines the range for the Prices, starting from B2 and extending down to the last Price entry.CHOOSE({1,2}, ProductIDRange, PriceRange)combines the two dynamic ranges into a virtual table (array) where the Product IDs are in the first column and the Prices are in the second column.VLOOKUP(D1, CHOOSE({1,2}, ProductIDRange, PriceRange), 2, FALSE)performs the lookup using the Product ID in D1, searches within the dynamically created array, and returns the corresponding price from the second column.FALSEensures an exact match.
This approach makes your VLOOKUP automatically adjust when you add or remove products from your data table.
Tips and Tricks
- Error Handling: Use
IFERRORto handle potential#REF!errors if the offset goes beyond the worksheet boundaries. For example:
. - Absolute vs. Relative References: Use absolute references (
$A$1) for thereferenceargument if you want the offset to always be relative to a fixed cell, even when you copy the formula. - Named Ranges: Using named ranges makes your OFFSET formulas more readable and easier to maintain. Refer to the earlier examples using the Name Manager.
- Volatile Nature: Be mindful of the volatile nature of the OFFSET function, especially in large workbooks. Consider alternative functions like
INDEXandMATCHwhen performance is critical. Keyboard shortcut:F9will force a recalculation of the entire workbook, including volatile functions.
Alternatives to OFFSET
While powerful, OFFSET can be resource-intensive. INDEX and MATCH often provide a more efficient alternative.
Using INDEX and MATCH instead of OFFSET
Instead of using the OFFSET function, consider using the INDEX and MATCH functions, especially in large datasets, for performance reasons. INDEX and MATCH are not volatile.
For Example 1, where we referenced cell B2 using A1 as the reference:
A1:C3is the data range.2is the row number within the range.2is the column number within the range.
To make the formula more dynamic:
This gives the same result, but utilizes INDEX and MATCH instead of OFFSET.
For Example 2, referencing cell A3 using C1 as the reference:
Key Keyboard Shortcuts for Working with Excel Formulas
- F2: Edit the selected cell. This is useful for inspecting and modifying existing formulas.
- F4: Toggle between relative, absolute, and mixed cell references while editing a formula.
- Ctrl + Shift + Enter: Enter an array formula. This is necessary when working with functions that return arrays.
- Ctrl + ` (grave accent): Show all formulas in the worksheet. This is a quick way to audit your formulas.
- Alt + =: Quickly insert the SUM function for a range of cells.
- F9: Calculate the selected part of a formula. Useful for debugging complex formulas.
Summary
The Excel OFFSET function is a valuable tool for creating dynamic ranges and performing advanced calculations. While it’s important to be aware of its volatile nature and consider alternative functions like INDEX and MATCH when performance is critical, OFFSET can significantly enhance your ability to analyze and manipulate data in Excel. By understanding its syntax and practical applications, you can leverage its power to create more flexible, automated, and insightful spreadsheets.
FAQs
1. Why does my OFFSET function return a #REF! error?
The #REF! error indicates that the rows or cols arguments in your OFFSET function have caused the function to attempt to reference a cell that is outside the boundaries of the worksheet. Double-check your offset values to ensure they are within the valid range of rows and columns.
2. How can I make my OFFSET formula more dynamic?
Use functions like COUNTA, COUNT, MATCH, or COLUMNS and ROWS within the rows, cols, height, and width arguments of the OFFSET function. These functions can dynamically determine the values based on the data in your spreadsheet. See the dynamic chart and data validation list examples above for illustrations.
3. Is OFFSET always the best function to use for dynamic ranges?
No. OFFSET is a volatile function, meaning it recalculates every time the worksheet changes. This can negatively impact performance in large or complex spreadsheets. Consider using INDEX and MATCH as alternatives, as they are not volatile and can often achieve the same results with better performance. However, OFFSET is often easier to understand and implement for simple scenarios.
