Connecting Your Excel Data to Niagara Stations: A Comprehensive Guide

Integrating data from Microsoft Excel spreadsheets into your Niagara station can unlock significant value for building automation systems (BAS). This allows you to leverage existing data logs, manually entered sensor readings, and calculated values directly within your Niagara platform for monitoring, control, and analysis. This comprehensive guide will walk you through the various methods of pulling data from Excel to a Niagara station, providing step-by-step instructions and practical examples. We’ll cover different approaches, from simple CSV imports to more advanced techniques using modules and drivers.

1. Understanding the Integration Landscape

Before diving into specific methods, let’s clarify the different approaches available for transferring data from Excel to Niagara. The most suitable method depends on the frequency of data updates, complexity of the data structure, and your technical expertise. The common approaches include:

CSV (Comma Separated Values) Import: The simplest method, involving exporting your Excel data into a CSV file and then importing it into Niagara. Suitable for infrequent data updates and straightforward data structures.
Using a Niagara Driver (e.g., CSV Driver): Many Niagara modules and drivers exist to streamline the process of reading data from CSV files, automatically updating values in your Niagara station as the CSV file changes.
OPC (OLE for Process Control) Connectivity: While less common for direct Excel integration, OPC can be used as an intermediary. You can expose Excel data via an OPC server and then connect to that OPC server from your Niagara station. This method offers more robust real-time data transfer capabilities.
Custom Module Development: For highly specific or complex integration scenarios, developing a custom Niagara module that directly reads from Excel files (using libraries like Apache POI) might be necessary.

This guide will primarily focus on the CSV import and Niagara CSV Driver methods, as they are the most practical and accessible for a broad range of users.

2. Exporting Data from Excel to CSV Format

The first step in many data transfer scenarios is exporting your Excel data to a CSV file. CSV files are plain text files where values are separated by commas, making them easily readable by various software applications, including Niagara.

Step-by-Step Instructions:

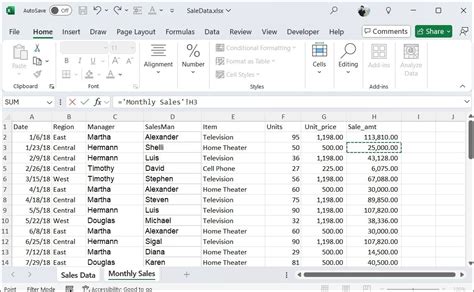

Open your Excel file: Ensure the data you want to transfer is organized in a tabular format.
Select the data range: Highlight the cells containing the data you want to export. If you want to export the entire sheet, you don’t need to select any cells.
Go to File > Save As: In the “Save As” dialog box, choose a location to save the file.
Select “CSV (Comma delimited) (*.csv)” from the “Save as type” dropdown menu. This is crucial for creating a properly formatted CSV file.
Give your file a descriptive name: For example, “SensorReadings.csv”.
Click “Save”.
Excel may display a warning about losing formatting. Click “Yes” to continue saving in CSV format.

Important Considerations:

Data Types: CSV files do not retain formatting information. All data is stored as text. Niagara will attempt to interpret the data types (numeric, boolean, string) upon import.
Headers: Include a header row in your Excel data. These headers will be used to identify the columns when importing the CSV file into Niagara.
Special Characters: Ensure your data does not contain commas within the values themselves, as this can disrupt the CSV format. If necessary, use a different delimiter (e.g., semicolon) or enclose the values in quotes.

Example:

Suppose you have sensor readings in an Excel sheet like this:

Sensor ID	Temperature (°C)	Humidity (%)	Timestamp
Sensor001	23.5	60	2023-10-27 10:00:00
Sensor002	24.1	62	2023-10-27 10:00:00
Sensor001	23.8	61	2023-10-27 10:05:00
Sensor002	24.3	63	2023-10-27 10:05:00

After exporting to CSV, the “SensorReadings.csv” file will look like this:

Sensor ID,Temperature (°C),Humidity (%),Timestamp
Sensor001,23.5,60,2023-10-27 10:00:00
Sensor002,24.1,62,2023-10-27 10:00:00
Sensor001,23.8,61,2023-10-27 10:05:00
Sensor002,24.3,63,2023-10-27 10:05:00

3. Importing CSV Data into Niagara

Once you have your CSV file, you can import it into your Niagara station. This section outlines the manual import process and introduces the CSV Driver for automated updates.

3.1 Manual CSV Import

This method is suitable for one-time data transfers or infrequent updates.

Step-by-Step Instructions:

Identify the Niagara point(s): Determine which Niagara points you want to populate with the data from your CSV file. These points should already exist in your station. You need to consider the data type of the Excel data and ensure it matches the Niagara point’s data type.
Open the Niagara Workbench: Launch the Niagara Workbench application and connect to your Niagara station.
Navigate to the point(s) in the Nav Tree: Locate the Niagara point(s) where you want to import the data.
Use a suitable technique: The specific import method will depend on the Niagara version and available modules. Typically, you would:
- Copy and Paste: If the number of points is small, you can copy the values from the CSV file and paste them directly into the “Writable” property of the corresponding Niagara points in the Property Sheet. Ensure the order of the data in the CSV file matches the order of the points in Niagara.
- Use a Custom Script or Module: For more complex scenarios, you might need to create a custom Niagara script or use a specific module that supports CSV import and mapping to Niagara points.
Verify the Data: After importing the data, verify that the values in the Niagara points are correct.

Limitations:

Manual Process: This method requires manual intervention for each data update.
Error-Prone: Copying and pasting data can be error-prone, especially with large datasets.
Not Scalable: This method is not suitable for frequent data updates or large numbers of data points.

3.2 Using the Niagara CSV Driver (Automated Updates)

The Niagara CSV Driver provides a more automated and scalable solution for importing data from CSV files. It allows you to define a mapping between columns in the CSV file and Niagara points, and it automatically updates the Niagara points whenever the CSV file changes.

Step-by-Step Instructions (General Approach – specific steps may vary depending on the driver used):

Install the CSV Driver: Ensure that the necessary CSV driver is installed in your Niagara station. This driver might be part of a larger module or available as a separate add-on. Consult the documentation for your specific Niagara version and the driver in question.
Add a CSV Network: In the Niagara Workbench, create a new “CSV Network” or similar object provided by the driver. This network will represent the connection to your CSV file.
Configure the CSV Network: Configure the properties of the CSV Network, including:
- File Path: Specify the full path to your CSV file.
- Update Interval: Set the interval at which the driver will check the CSV file for changes and update the Niagara points.
- Delimiter: Specify the delimiter used in the CSV file (typically a comma).
- Header Row: Indicate whether the CSV file contains a header row.
Add CSV Points: For each Niagara point you want to update from the CSV file, add a corresponding “CSV Point” (or similar object) under the CSV Network.
Configure the CSV Points: Configure the properties of each CSV Point, including:
- Column Mapping: Specify which column in the CSV file should be mapped to the Niagara point. This is usually done by referencing the column name from the header row.
- Data Type: Ensure the data type of the CSV Point matches the data type of the Niagara point.
- Writable (if applicable): If the Niagara point is writable, you might be able to configure the CSV driver to write data back to the CSV file.

Example:

Continuing with the “SensorReadings.csv” example, you might create the following CSV Points in your Niagara station:

Point: Room1Temperature (NumericWritable)
- Column Mapping: Temperature (°C)
- Data Type: Numeric
Point: Room1Humidity (NumericWritable)
- Column Mapping: Humidity (%)
- Data Type: Numeric

The CSV driver would then automatically update the Room1Temperature and Room1Humidity Niagara points with the corresponding values from the “SensorReadings.csv” file, based on the specified update interval.

Benefits of using the CSV Driver:

Automated Updates: The driver automatically updates Niagara points whenever the CSV file changes.
Scalability: Easily manage a large number of data points and CSV files.
Reduced Errors: Eliminates the need for manual data entry, reducing the risk of errors.

For official guidance, refer to Microsoft’s official Excel documentation.

4. Excel Formulas and Data Preparation for Niagara Integration

Properly preparing your data in Excel before exporting to CSV is crucial for seamless integration with Niagara. This includes using Excel formulas to clean, transform, and validate the data.

4.1 Data Cleaning and Transformation

Handling Missing Values: Use the IF and ISBLANK functions to handle missing values.

excel =IF(ISBLANK(A1), 0, A1) // Replaces blank cells in A1 with 0
Converting Data Types: Ensure that the data types in your Excel sheet match the expected data types in Niagara. Use functions like VALUE, TEXT, and DATE to convert data types if necessary.

excel =VALUE(B1) // Converts the text in cell B1 to a numeric value
Text Manipulation: Use text functions like LEFT, RIGHT, MID, CONCATENATE, and SUBSTITUTE to extract or modify text strings.

excel =LEFT(A1, 3) // Extracts the first 3 characters from cell A1

4.2 Data Validation

Using Data Validation Rules: Set up data validation rules in Excel to prevent invalid data from being entered into your spreadsheet. This will help ensure the integrity of the data that is imported into Niagara. You can access Data Validation from the “Data” tab on the Excel ribbon. Common validation rules include:
- Whole Number: Limits the entry to whole numbers within a specified range.
- Decimal: Limits the entry to decimal numbers within a specified range.
- List: Allows the user to select from a predefined list of values.
- Date: Limits the entry to dates within a specified range.
- Text Length: Limits the length of the text string entered.
Conditional Formatting: Use conditional formatting to highlight cells that contain invalid data or data that falls outside of a specified range. This helps you quickly identify and correct errors.

4.3 Example Scenario: Calculating Average Temperature

Suppose you have a series of temperature readings in column B, and you want to calculate the average temperature for each sensor ID in column A. You can use the AVERAGEIF function to accomplish this.

=AVERAGEIF(A:A, "Sensor001", B:B)  // Calculates the average temperature for Sensor001

This formula calculates the average of the values in column B only for the rows where the corresponding value in column A is “Sensor001”. You can then export this calculated average temperature to Niagara.

5. Troubleshooting Common Issues

Integrating Excel data with Niagara can sometimes present challenges. Here are some common issues and their solutions:

CSV File Not Found: Ensure that the file path specified in the CSV driver is correct and that the file exists at that location. Verify that the Niagara station has the necessary permissions to access the file.
Data Type Mismatch: Make sure that the data types of the CSV columns and the Niagara points are compatible. If necessary, use Excel formulas to convert the data to the correct type before exporting to CSV.
Incorrect Delimiter: Verify that the delimiter specified in the CSV driver matches the delimiter used in the CSV file. The most common delimiter is a comma (,), but other delimiters, such as semicolons (;) or tabs, are also used.
Header Row Issues: If the CSV file contains a header row, make sure that the CSV driver is configured to recognize the header row. Also, ensure that the column names in the header row are correctly mapped to the corresponding Niagara points.
Update Interval Too Frequent: Setting the update interval too frequently can put a strain on the Niagara station and potentially lead to performance issues. Choose an update interval that is appropriate for the frequency of data changes in the CSV file.
Niagara Station Permissions: The Niagara station user might not have the correct permissions to write data to the desired Niagara points. Verify and adjust user permissions as needed.

6. Alternative Approaches: OPC and Custom Modules

While CSV-based integration is often the most practical approach, two alternative methods exist for more complex scenarios:

OPC (OLE for Process Control): You can use an OPC server to expose Excel data. Software exists that can act as an OPC server, reading from Excel spreadsheets and making the data available to OPC clients. Your Niagara station, acting as an OPC client, can then connect to this OPC server and read the data. This approach provides more real-time data transfer capabilities and is suitable for scenarios where near-instantaneous updates are required. However, it introduces additional complexity in terms of setting up and configuring the OPC server.
Custom Niagara Module Development: For highly specific integration requirements, you can develop a custom Niagara module that directly reads from Excel files using libraries like Apache POI. This approach provides the greatest flexibility and control over the integration process, but it requires significant programming expertise and is typically only necessary for very complex or specialized scenarios.

Summary

This guide has provided a comprehensive overview of how to pull data from Excel to a Niagara station. We covered exporting data to CSV format, importing CSV data manually and using the Niagara CSV Driver for automated updates, preparing data in Excel using formulas, and troubleshooting common issues. By following these steps and understanding the different integration methods, you can effectively leverage your existing Excel data within your Niagara building automation system.

FAQs

Q1: Is it possible to write data from Niagara back to the Excel file?

A: Yes, some Niagara CSV drivers allow you to write data back to the CSV file. This typically involves configuring the driver to monitor changes in the Niagara points and then update the corresponding columns in the CSV file. However, this capability may vary depending on the specific CSV driver you are using. Be cautious when writing back to Excel files as concurrency issues can arise if multiple systems are trying to access/modify the Excel document simultaneously.

Q2: Can I use Excel formulas directly within the Niagara station?

A: No, you cannot directly use Excel formulas within the Niagara station. You need to perform the calculations in Excel and then import the calculated values into Niagara. However, Niagara does have its own expression language that you can use to perform calculations within the station.

Q3: What are the limitations of using the CSV Driver for data integration?

A: The CSV Driver has several limitations, including:

Data Type Conversion: Niagara might not always correctly infer the data types from the CSV file, requiring manual adjustments.
File Size: Large CSV files can take a long time to load and process, potentially impacting performance.
Real-time Updates: The CSV Driver is not suitable for real-time data updates, as it relies on polling the CSV file at a specified interval. For real-time data transfer, consider using OPC or a custom module.
Data Integrity: CSV files do not provide built-in mechanisms for ensuring data integrity. You need to implement your own data validation rules in Excel to prevent errors.
